37245268
SF-1600F14HT ATX3.1

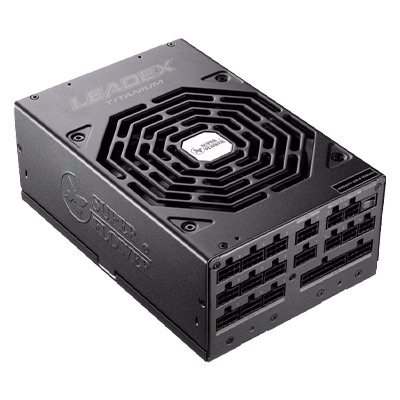

LEADEX Titanium 1600W ATX3.1 are 80+ Titanium certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
LEADEX series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA? SLI? or ATI CrossFireX? setup.
?100% Full Modular Cabling Design For Easy Cable Management
?80 PLUS? Titanium Certified, 90% 92% 94% 90% Efficiency At 10% 20% 50% 100% Rated Load
?Full Range Auto Voltage Detection Design 115V~240V (Active PFC)
?Comply With ATX 12V v3.1, EPS 12V v2.92 Specification.
?Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
?Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection /?Over Temperature Protection?/?No Load Operation / Surge & Inrush Protection
?Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards
?Support NVIDIA? SLI? & ATI CrossFireX? High Performance Graphic Card
?More than 2,000 times On/Off test
?Unleaded Green Materials with RoHS/WEEE Compliance
?Perfect For Professional & High Performance Gaming System
?Exclusive Patents
(Taiwan & China Patents Approved, USA, Germany & Japan Patents Pending)
1. ECO Intelligent Thermal Control System
2. Multi Patenet Pending Extreme High Efficiency Main Transformer
?This?product is designed for personal desktop system and high-end gaming systems,?warranty void?if use for the following special-purpose system:
?
?
Model No. | SF-1600F14HT | |
Wattage | 1600W | |
80+ Efficiency | 10%: 90%; 20%: 92% ; 50% : 94% ; 100% : 90% (115V Internal Titanium) | |
Intel Power Design Guide | EPS Ver. 2.92 & ATX 3.1 | |
AC Input / Frequency | 100-240V | 60 / 50Hz | |
Fan Size | 140mm Two-Ball Bearing Fan | |
Dimension | 220mm(L) x? | |
Protection | OVP/ OCP/ OPP/ SCP/ UVP/ OTP/ NLO/ SIP | |
Safety | cTüVus / TüV / CB / CE / FCC / RCM / RoHS / KCC / CQC | |
Temprature | Passed 50℃ Hot Testing | |
Cable Spec | ||
20+4Pin | Detachable Cables | One cable (600mm) |
8 (4+4) Pin CPU | Two cables (750mm) | |
PCI-E 6+2Pin | Four cables (750mm) | |
SLI (2 x PCI 6+2Pin) | Five cables (750+150mm) | |
4SATA | Three cables (550+100+100+1000mm) | |
2SATA+2Molex | One cable (550+100+100+100mm) | |
3Molex | One cable (550+100+100mm) | |
Molex to FDD Adapter | Two cables (100mm) | |
PCIe 16 Pin | Two Cables (700mm) | |
